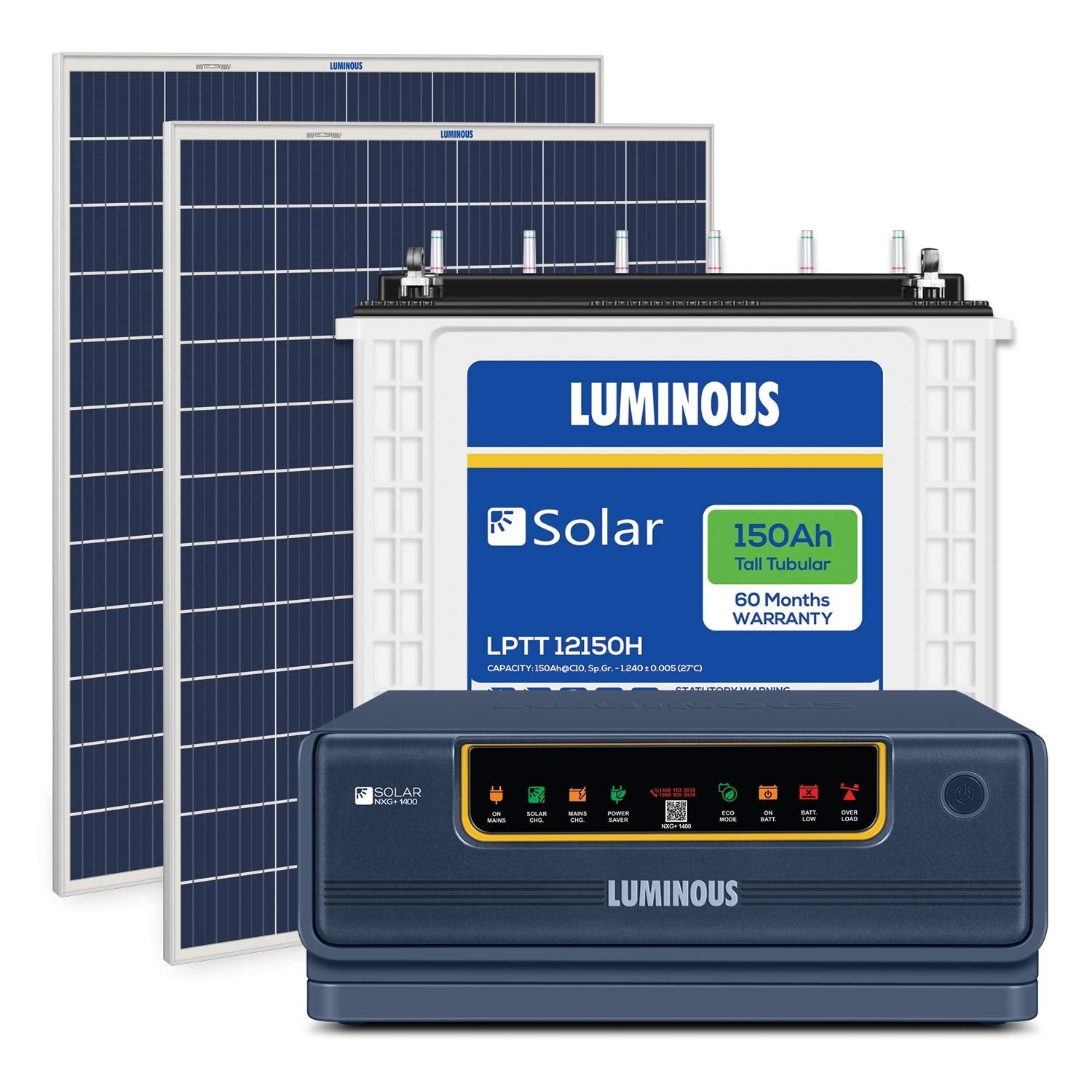

Luminous NXG+ 1400 Inverter (1) with LPTT12150H Battery (1) and Solar Panel 165W (2)
Luminous NXG+ 1400 Inverter (1) with LPTT12150H Battery (1) and Solar Panel 165W (2)
Regular price
Rs. 42,000.00
Regular price
Rs. 49,990.00
Sale price
Rs. 42,000.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Luminous NXG+ 1400 Inverter (1) with LPTT 12150H Battery (1) and Solar Panel 165W (2), Blue
Solar Inverter – NXG 1450
- Capacity (VA): 1100VA
- Operating Voltage 90V-290V
- Max supported panel power: 12V upto 1100 Wp
- Charge Controller Rating - 60 Amp
- Supports single battery
- 24 Month Warranty
- BIS certified as per IS/IEC standards which is mandatory for all solar inverters
- 3 User Settable Saving Modes: Solar Mode, Solar+Grid Mode and Grid+Solar Mode
- View daily solar generation data in all new LCD display screen
- Power savings of 1.5 - 3 units per day* with the help of Intelligent Solar Optimization Technique (iSOT).
- Max Capacity Utilization: Connect Solar Panels equivalent to Solar Inverter’s VA ratings.
- Powerful charging even at low voltage (90V) making it ideal for areas having low voltage issues.
- Pure Sine wave output for safety of your sensitive appliances and noiseless operations.
- Safe for your family and appliances: Short-circuit protection, Over temperature protection, Overload protection, No load shutdown.
Solar Panel 165W / 12V Poly
- Poly crystalline Cells type Panel
- Capacity - 165 W, 12V
- Voltage: Voltage at Max Power (Vmax) - 18.65V, Open Circuit Voltage (Voc) - 22.84V
- Current: Current at Max Power (imax) - 8.85A, Short Circuit Current (isc) - 9.55A
- 25 years performance warranty.
- Compliance to IEC standards
- Best in Class conversion efficiency
- Anti-reflective coating and back surface (BSF) for more light absorption
- Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules
- High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads
- PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions
- Excellent Low light performance in low visibility in clouds, evening, and morning.

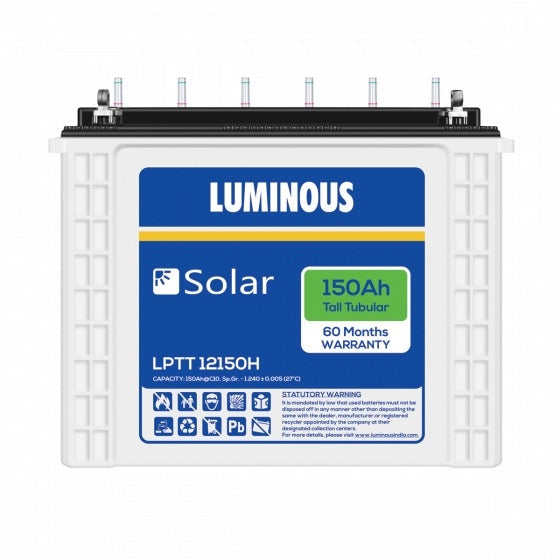

2 Pieces Solar Battery 150 Ah – LPTT12150H
- 150 Ah Rated Capacity @ C10, 12V
- Warranty - 60* Months
- Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and long Back up
- Long cycles (1500 @80% DOD, 5000 @ 20% DOD), ensuring design life
- Longer life without discharge with self-discharge rate of 3% per month STC.
- Efficient battery with Higher AH efficiency > 90%, and WH efficiency > 80%
- Low maintenance with a topping frequency of 8-10 months, low maintenance with level indicators
- Manufactured with high corrosion resistant and robust spine technology using the advanced and state-of-the-art HADI high pressure (at 100 bar) spine casting machines, which ensure a super fine grain structure, for strength, long life and highest reliability
- Designed with thicker positive plates and 20% more electrolyte to withstand power outage
