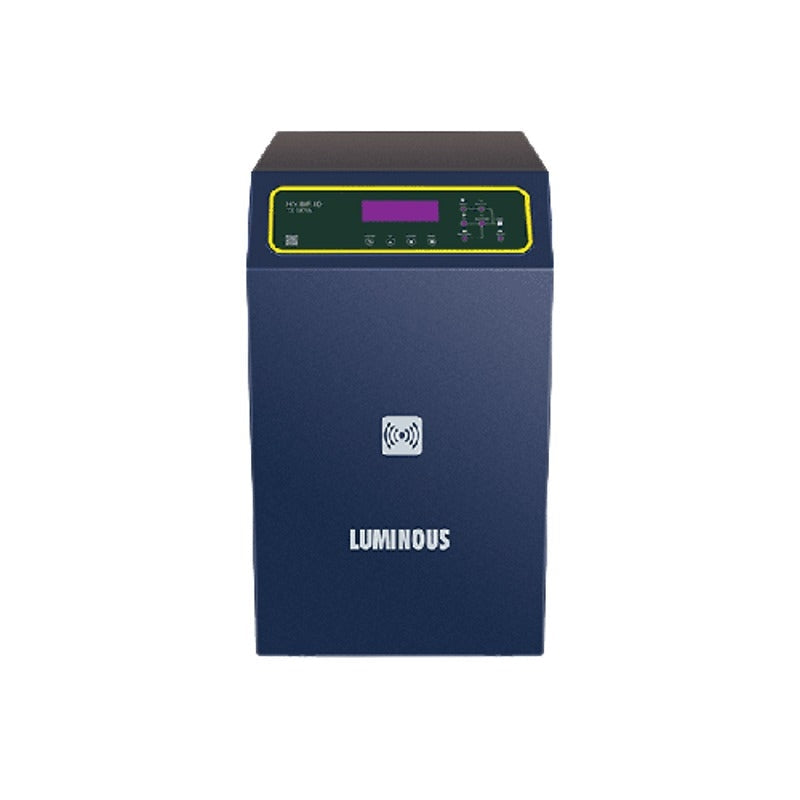

Luminous Hybrid TX 5 KVA 48V Pure Sine Wave Single Phase Solar Inverter

Key Features

• Protect From Grid Surges & Noise User Selectable Source Priority: Choose Source Priority Among SBG, SGB, Solar Only & Grid.

• Better Performance & Safety of Connected Loads Safe for Your Home with Comprehensive Protection Features Such as Short-circuit, Reverse Polarity & Battery Overload.

• Maximum Power Point Tracking User Selectable Priority Settings Real Time Remote Monitoring Export Excess Power Generated & Also Get Backup in-built Zero Export Function.

MPPT Technology:

MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.

Operating Range - 180V-270V (single phase) Max Supported Panel Power - 4000 Wp, Input Voltage Range (Vmp) – 65V-130V Charge Controller - MPPT, Input Voltage Range (Voc)- 65V-165V Nominal Battery Bank Voltage - 48V BIS certified solar hybrid inverter Real time remote monitoring Anti-islanding protection to ensure safety of line workers Inbuilt MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority among SBG, SGB, Solar Only and Grid Feed mode User friendly Informative LCD Display along with LED indications In-built zero export function Pure sine wave output for better performance & safety of connected loads Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
